2001 Ducati Supersport 900

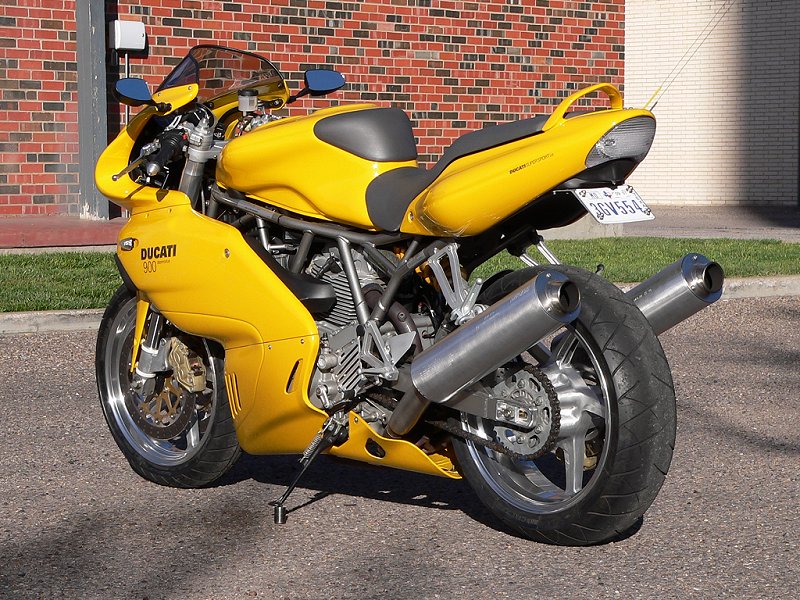

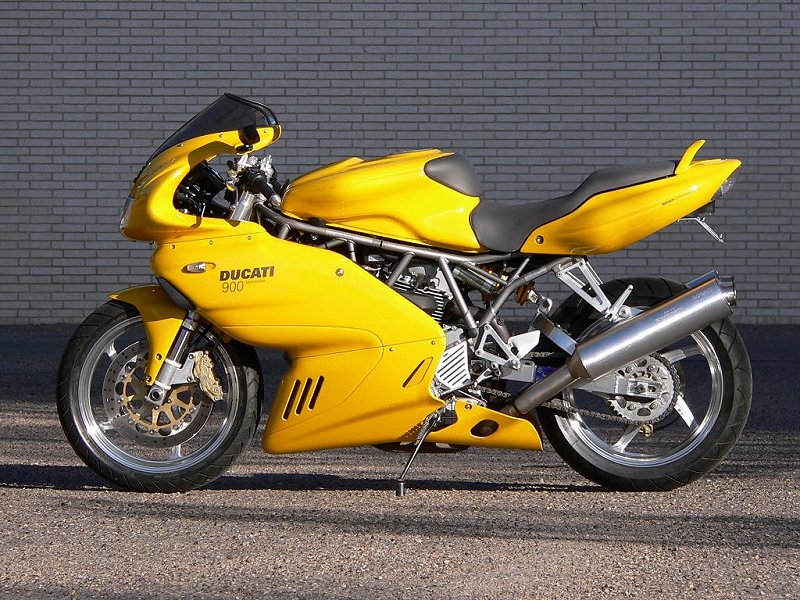

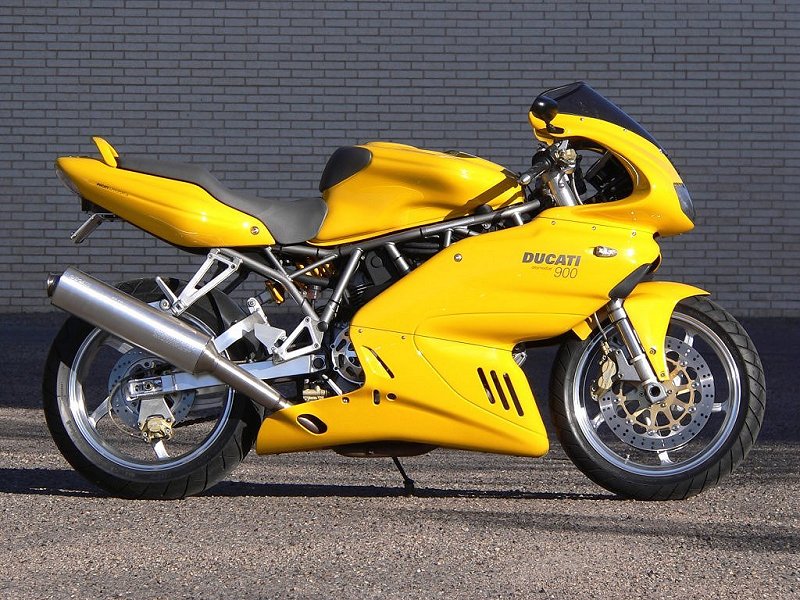

Street Trim Photos
Click on the images below to view a larger version




Click here to view all full size photos

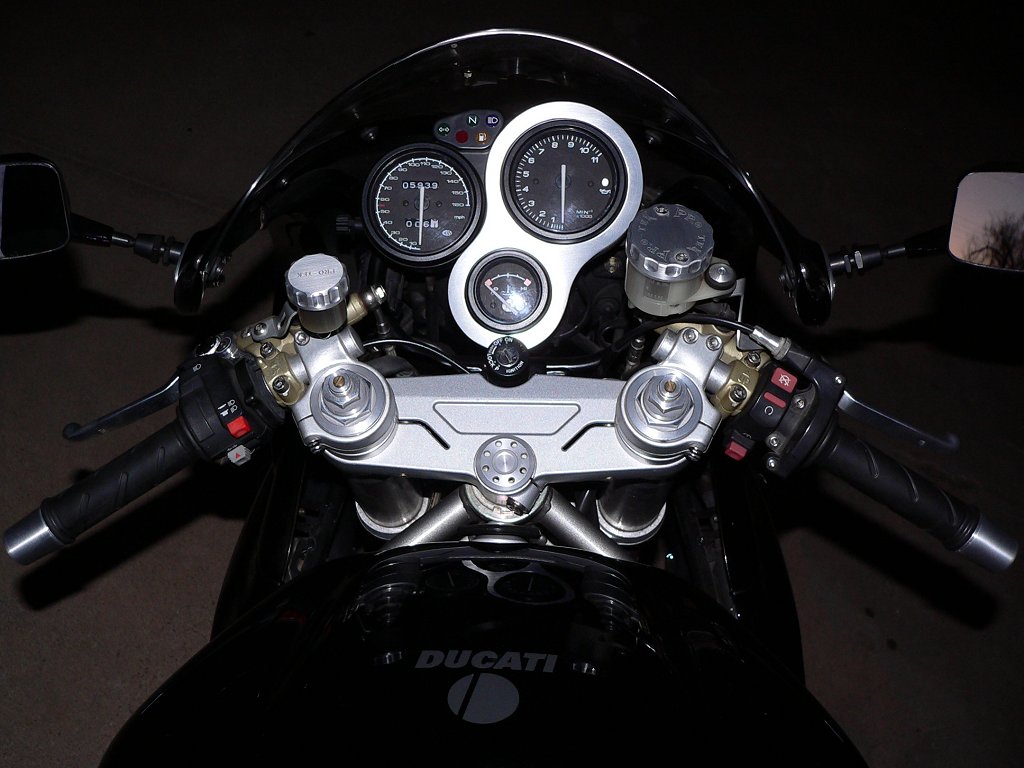

Track Day Trim Photos
Click on the images below to view a larger version






Upgrades and Modifications:

OEM Specifications:
  • Engine Type: 904cc, 90-degree L-twin cylinder, air cooled, 2 valves Desmodromic
  • Bore x Stroke: 92mm x 68mm
  • Compression Ratio: 9.2:1
  • Horse Power: 80 @ 7,500 rpm
  • Torque: 57.1 ft. lbs. @ 6,500 rpm
  • Induction: Electronic fuel injection
  • Transmission: Dry multiplate, 6 speeds with hydraulic control
  • Final Drive: 520 O-ring chain, 15-tooth front sprocket, 40-tooth rear sprocket
  • Front Suspension: 43mm inverted forks, adjustable preload, rebound, and compression
  • Rear Suspension: Cantilever with adjustable monoshock
  • Front Brakes: Dual 320mm discs, 4-piston calipers
  • Rear Brakes: 245mm disc, 2-piston caliper
  • Front Wheel: Marchesini 5-spoke light alloy, 3.50 x 17
  • Rear Wheel: Marchesini 5-spoke light alloy, 5.50 x 17
  • Front Tire: 120/70 ZR 17
  • Rear Tire: 170/60 ZR 17
  • Wheelbase: 54.9 inches
  • Rake: 24 degrees
  • Trail: 3.9 inches
  • Fuel Capacity: 4.2 gallons (1 gallon reserve)
  • Dry Weight: 415 lbs.
  • Seat Height: 32.1 inches

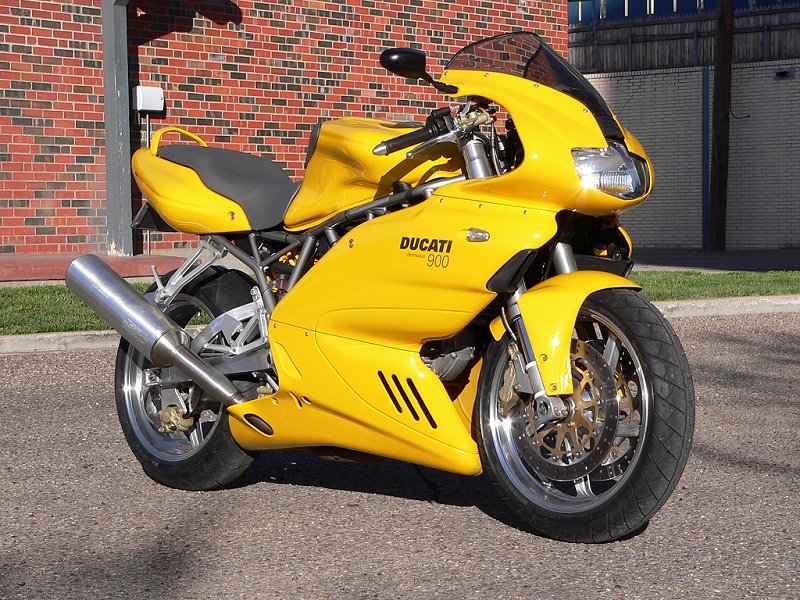

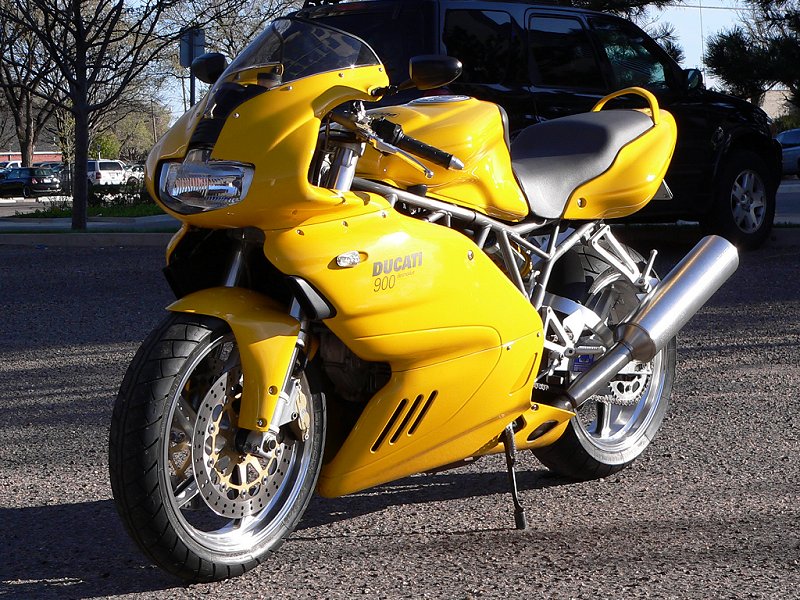

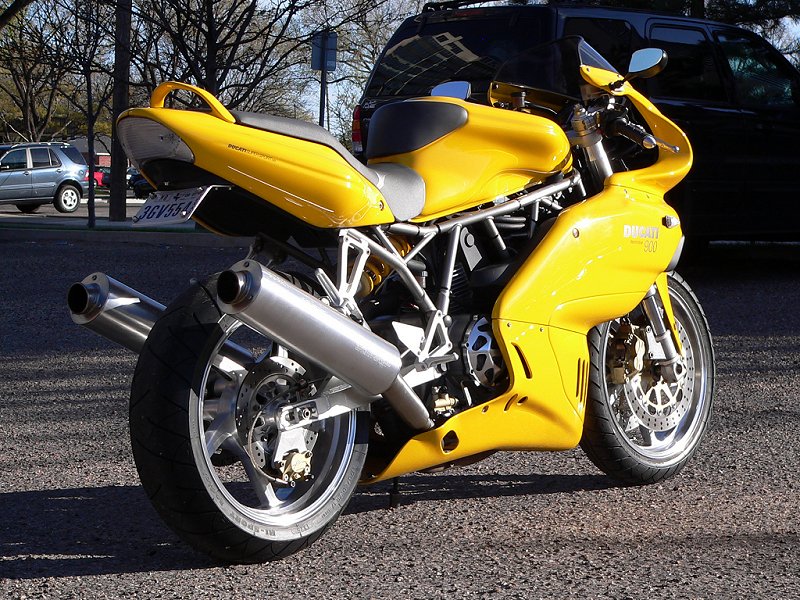

2006 Purchase Day Photos
Click on the images below to view a larger version
