Honda
2008 Honda CBR600RR
Graffiti Edition

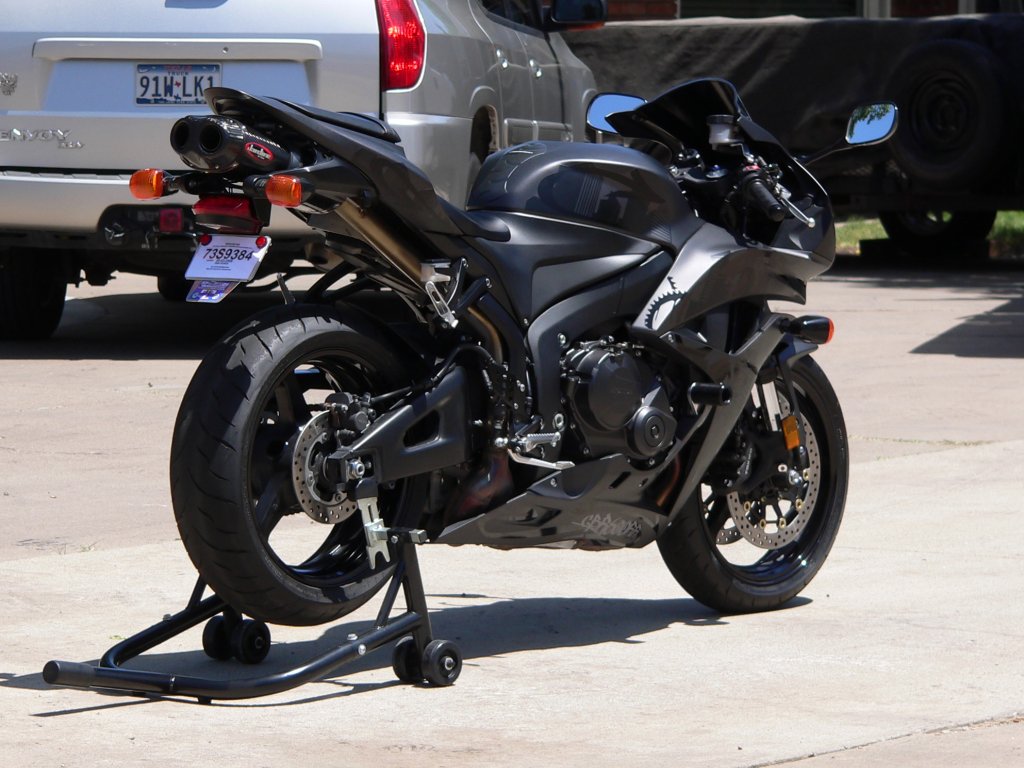

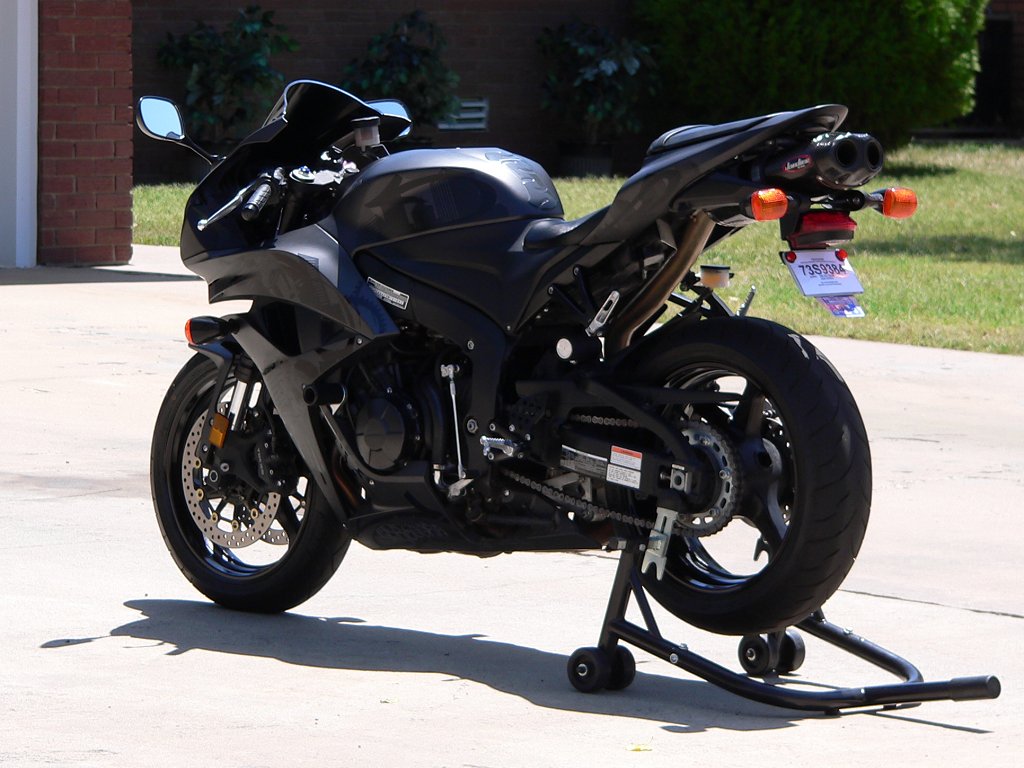

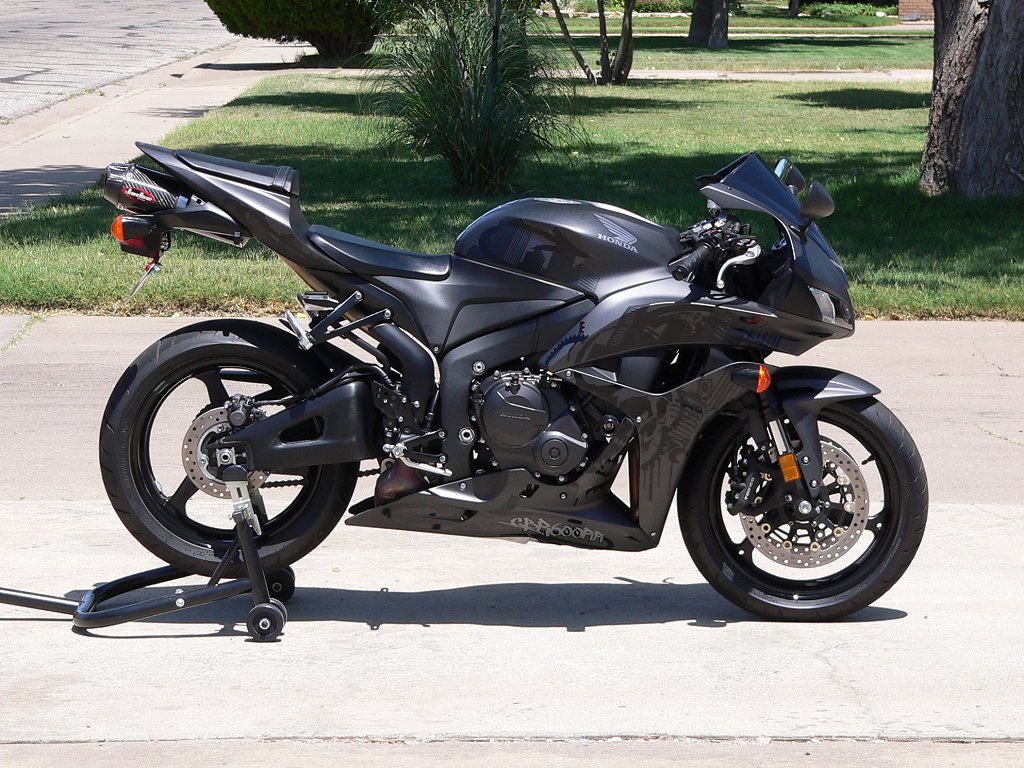

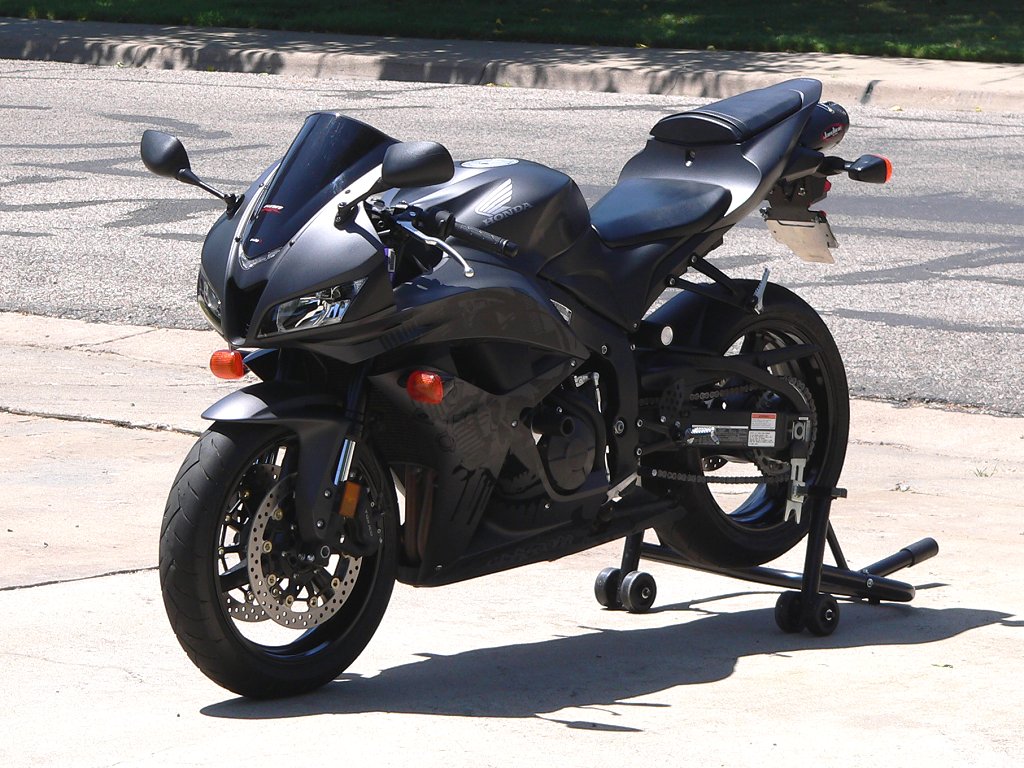

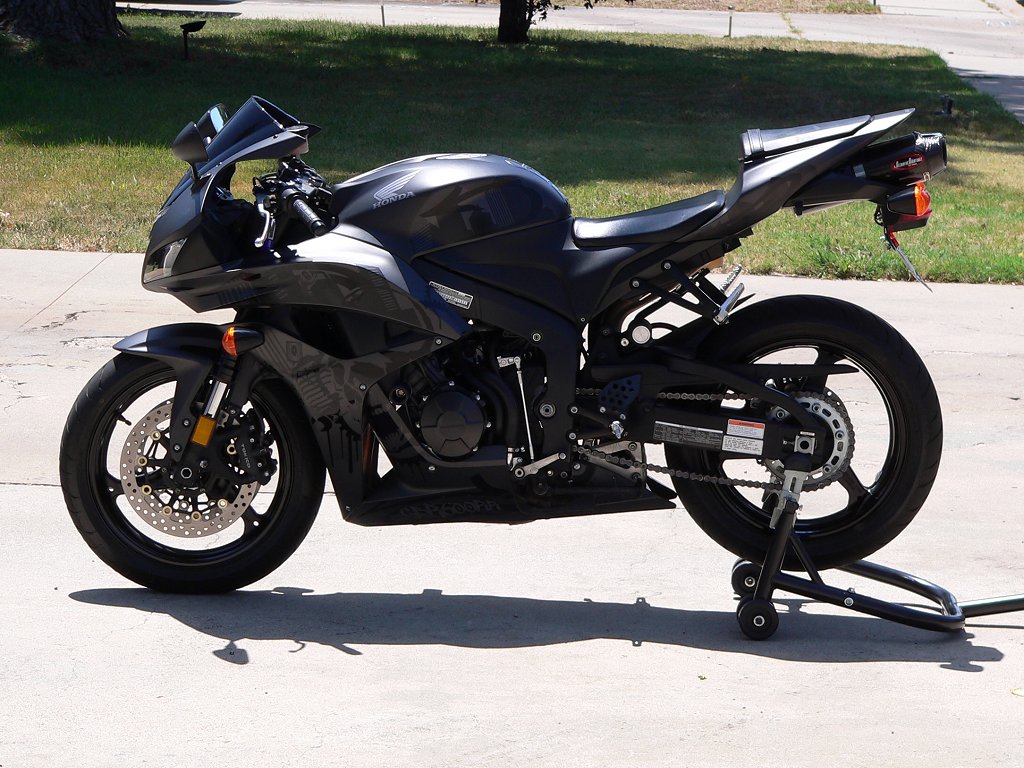

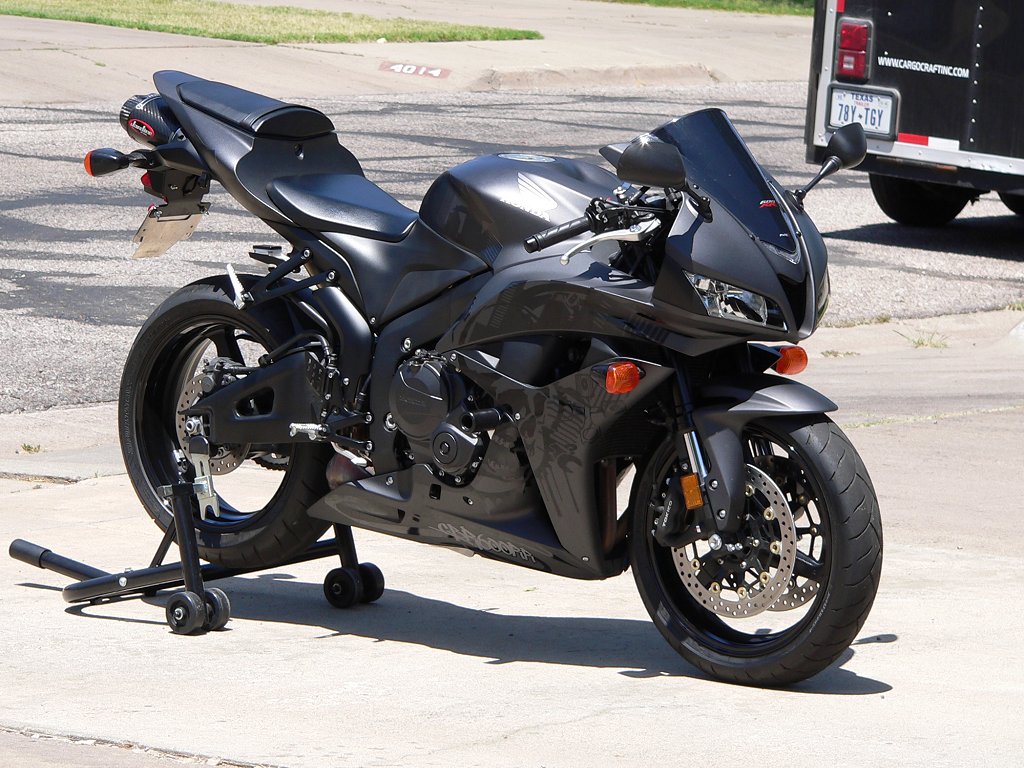

Current Photos
Click on the images below to view a larger version




Click here to view all full size photos

Upgrades and Modifications:

OEM Specifications:
  • Engine Type: 599cc, inline four-cylinder, liquid-cooled, DOHC, 4 valves per cylinder
  • Bore and Stroke: 67mm x 42.5mm
  • Compression Ratio: 12.2:1
  • Horse Power: 106.3 @ 13,100 rpm
  • Torque: 44.9 ft. lbs. @ 11,300 rpm
  • Induction: Dual Stage Fuel Injection, 40mm throttle bodies, Denso 12-hole injectors
  • Transmission: Wet multiplate clutch, 6 speeds
  • Final Drive: 525 O-ring chain, 16-tooth front sprocket, 42-tooth rear sprocket
  • Front Suspension: 41mm inverted forks, adjustable preload, rebound, and compression
  • Rear Suspension: Single shock, adjustable preload, rebound, and compression
  • Front Brakes: Dual 310mm discs, 4 piston calipers
  • Rear Brakes: 220mm disc, 1 piston caliper
  • Front Wheel: 3-spoke cast alloy, 3.50 x 17
  • Rear Wheel: 3-spoke cast alloy, 5.50 x 17
  • Front Tire: 120/70ZR-17
  • Rear Tire: 180/55ZR-17
  • Wheelbase: 53.9 inches
  • Rake: 23.55 degrees
  • Trail: 3.8 inches
  • Fuel Capacity: 4.8 gallons (0.9 gallon reserve)
  • Curb Weight: 410 lbs.
  • Seat Height: 32.3 inches
