Stealth PCIII Installation

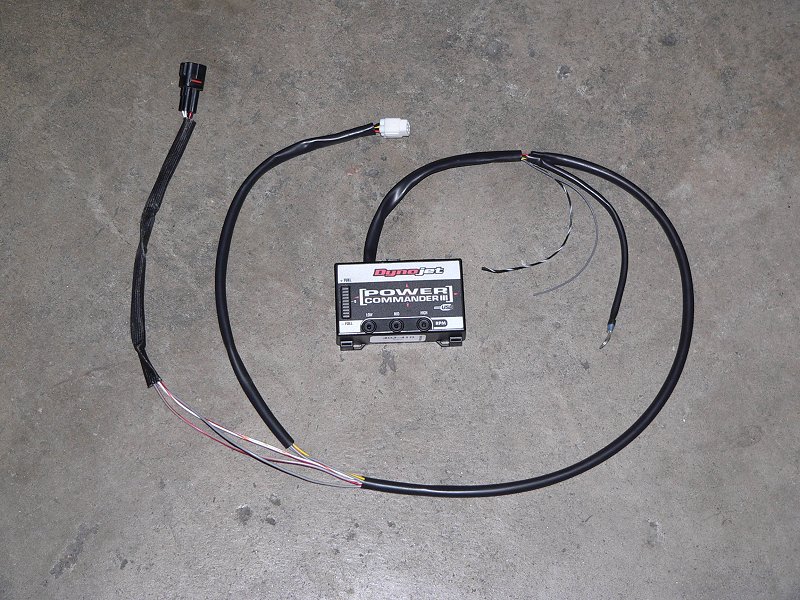

When i got my USB PCIII, i installed just like the directions and thought everything was fine.

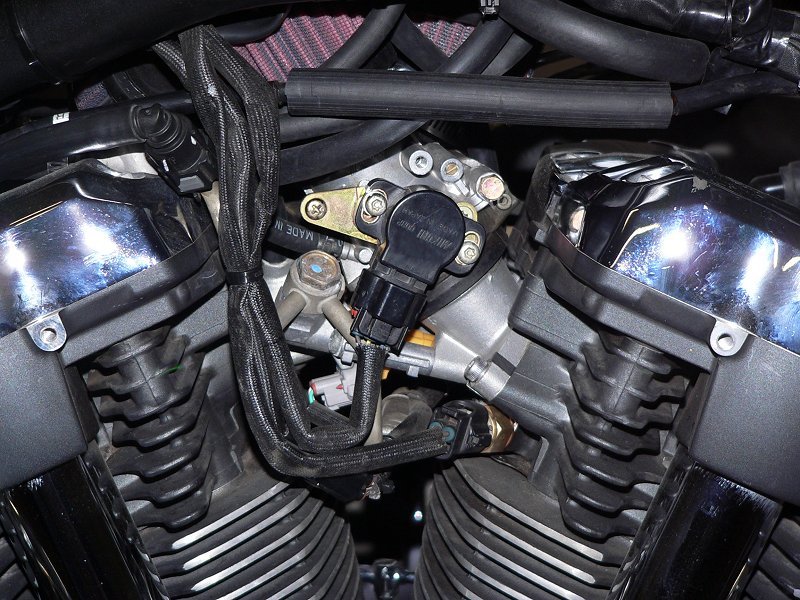

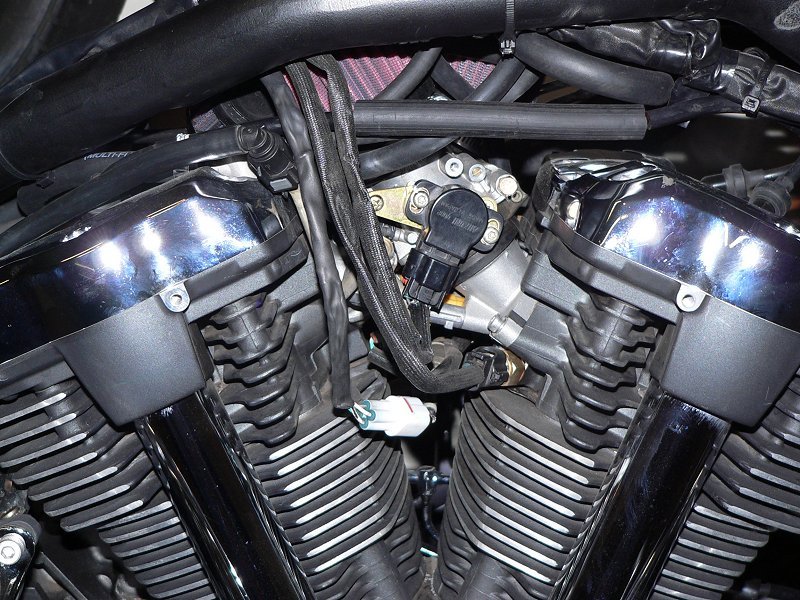

After the install, i realized that the harness added a lot more wiring near the throttle bodies that is very visible (and not too clean) with the extra wires and WHITE connectors.
I could see why people were always trying to cover that up with a Speedstar scoop or Baron's tear drop.
I liked not having anything covering up the motor (i installed a DIY BAK), but the wiring mess made me consider it.
|

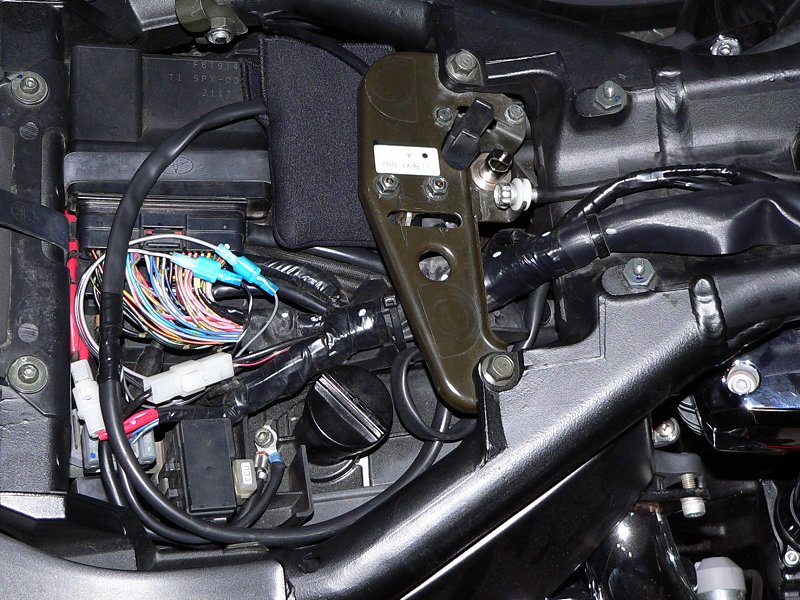

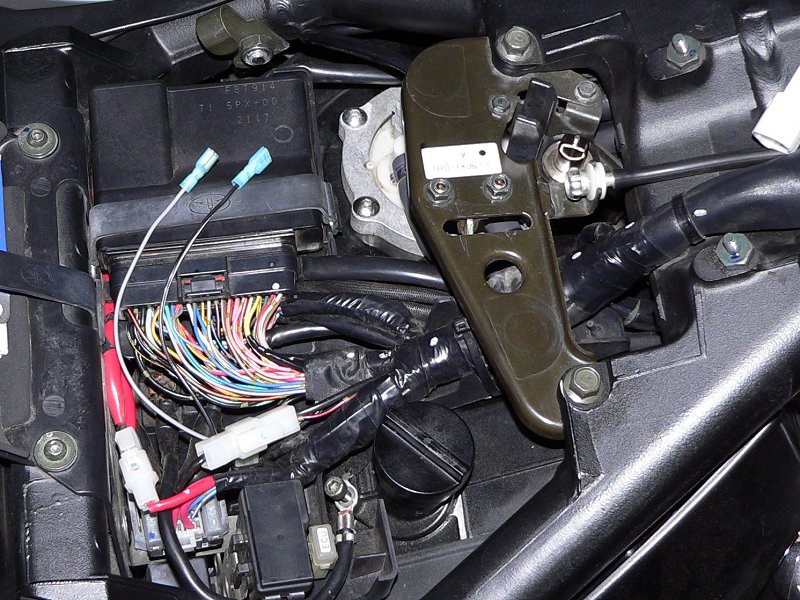

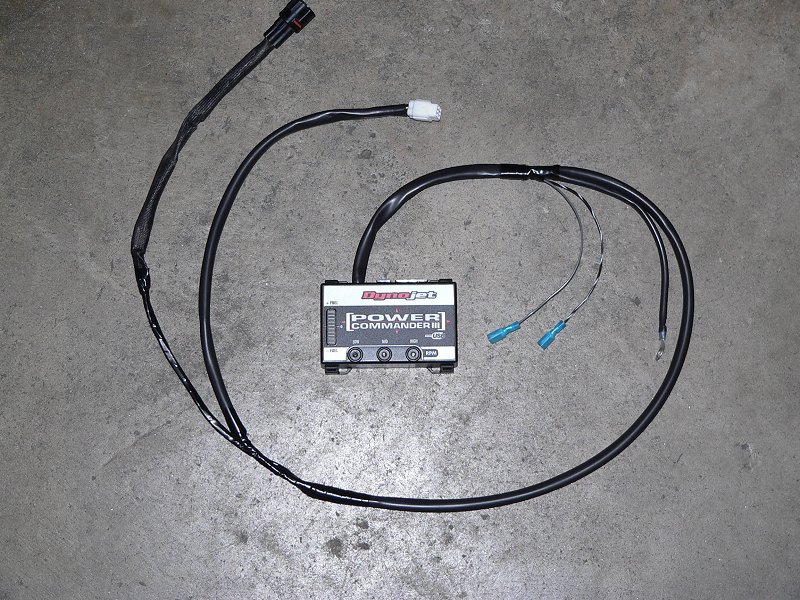

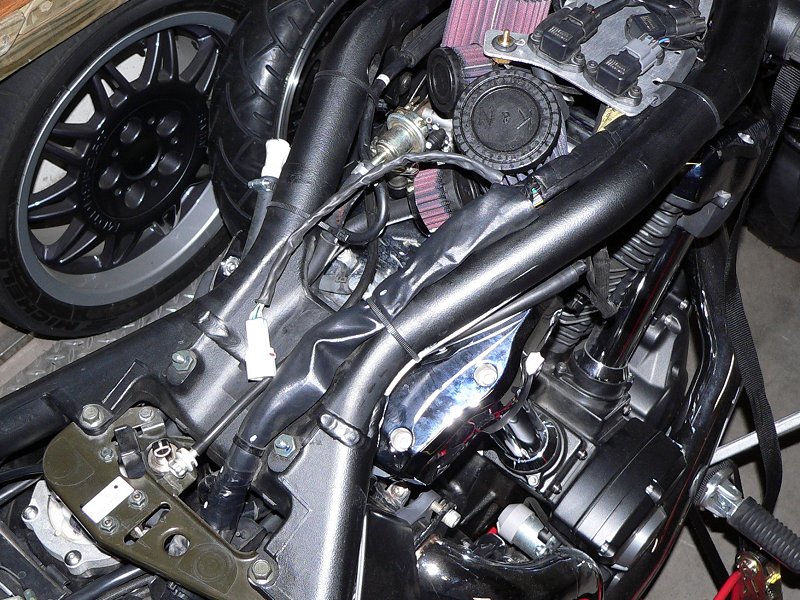

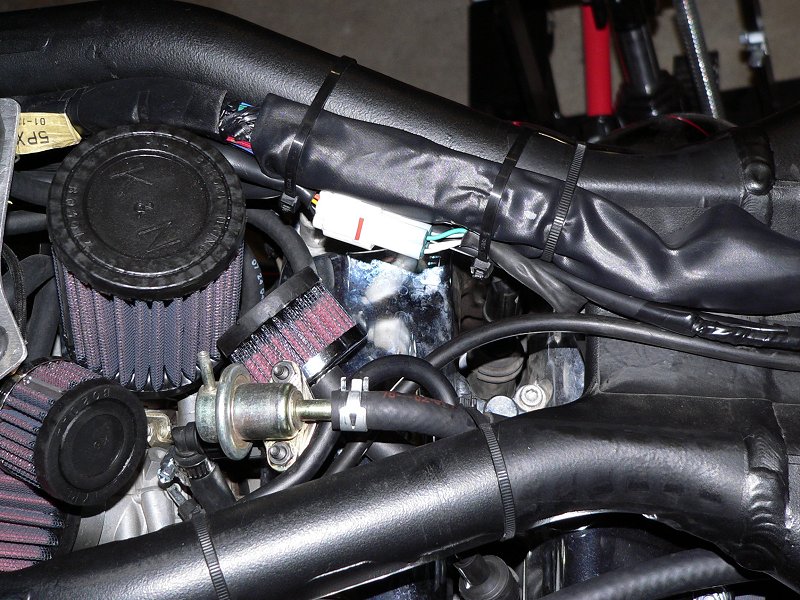

While pulling the gray and black/white wires back through the harness, i decided to pull back the female fuel injector connector half way back as well (by sectioning the longer protection tubing in half and removing the connector... i also had to extend the two black wires that go between both connectors). After carefully noting each color wire position of both the factory and PCIII connectors, i pulled the connectors off and swapped them between each other so that the white connector was now on the bike's wiring, and the black connector was now on the PCIII harness. I also pulled the factory braided sleeve off the factory wiring and put it on the PCIII... |
