CUSTOM FRONT AIR DAM

This air dam was an OEM part for a 1983-1988 Ford Ranger that has been modified to fit a Fox3 Mustang to improve cooling by creating more air flow to the radiator, increase gas mileage by improving the areodynamics, and also improve the overall appearance of the car when viewed from the front. This air dam was also seen on the older orange Fox3 Mustang GTs of the Bob Bondurant School of High Performance Driving... so, I'm not the only nut using it on a Mustang!

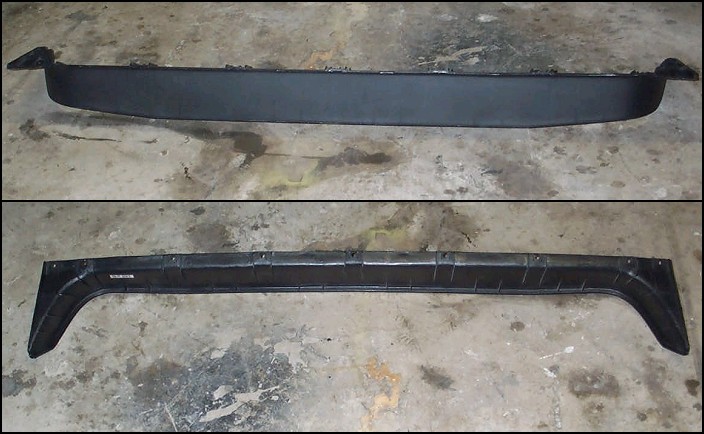

OEM Air Dam
Click on image to view a larger version
OEM Air Dam

This is the air dam fresh out of the plastic package from the Ford Dealership (Ford Part Number: E3TZ-10001A06-B). Some modifications were necessary to fit it under a Fox3 Mustang and still have a factory appearance.

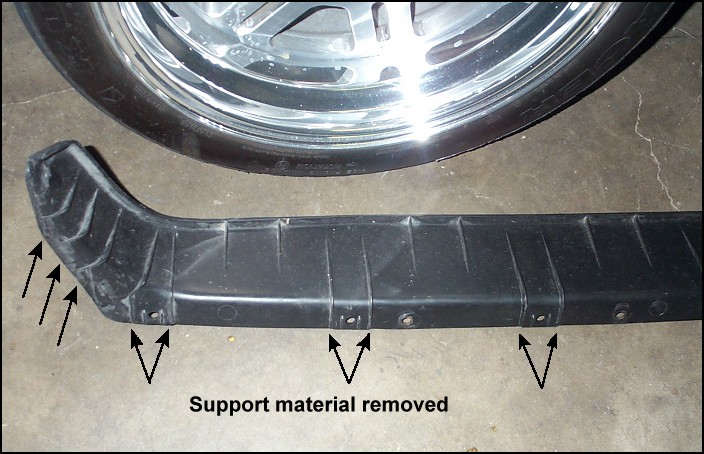

Support Material Trimmed

The top of the support material that rests against the bottom of the Ranger's front bumper was removed using a belt sander to allow the air dam to fit flat against the underside of the car.

Support Material Trimmed
Click on image to view a larger version

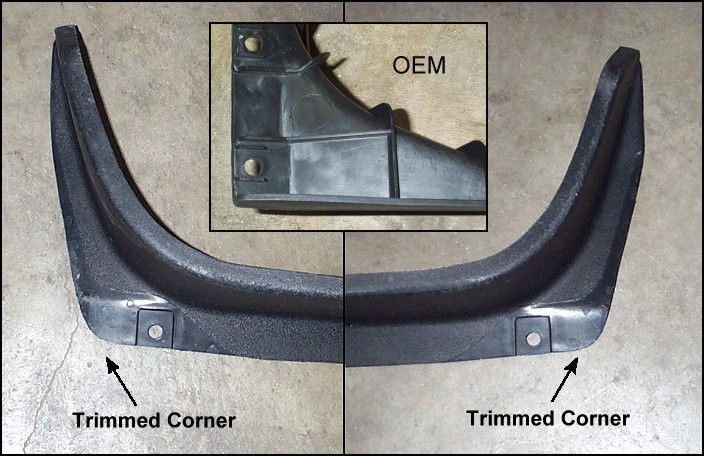

Corners Trimmed
Click on image to view a larger version
Corners Trimmed

The top corners of the air dam were square to match the Ranger's front bumper and were trimmed at a rounded angle to match the shape of the Mustang LX's curved front fascia.
Note: The corners do not need to be trimmed for fitment on a GT Mustang as the front fascia is wider and straight, however the top of the corners still need to be sanded flat with a belt sander to allow the air dam to fit flat against the underside of the car.

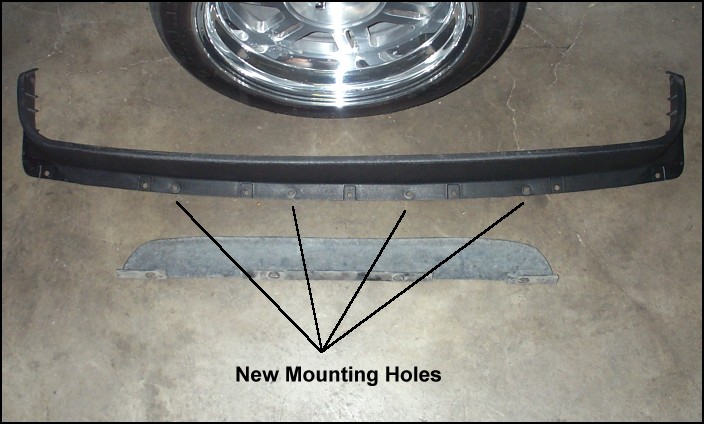

New Mounting Holes

Four new holes were drilled to match the Mustang's original air dam mounting holes (original air dam used as a template). The new air dam can now be bolted to the car with the original bolts.

New Mounting Holes
Click on image to view a larger version

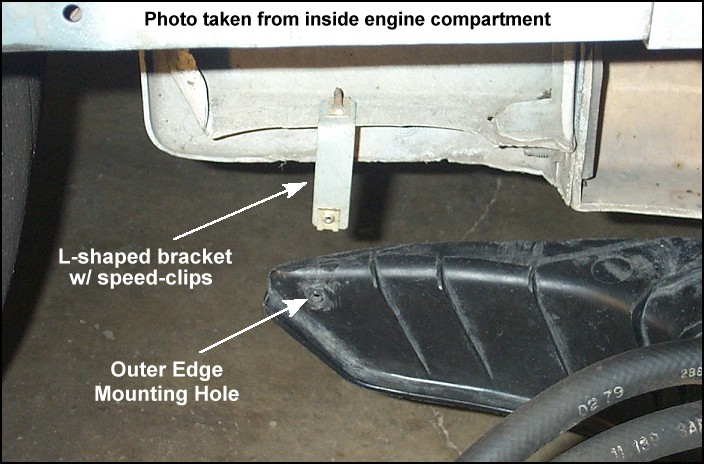

Outer Edge Mounting Brackets
Click on image to view a larger version
Outer Edge Mounting Brackets

To support the outer edges of the new air dam, an L-shaped bracket was made from sheet metal and attached to the underside of each metal fender (behind the fiberglass fender extensions) using a screw and speed-clip. Once the outer edge brackets were in place, matching holes in each end of the air dam were drilled to attach it to the brackets from the outside using another screw and speed-clip.

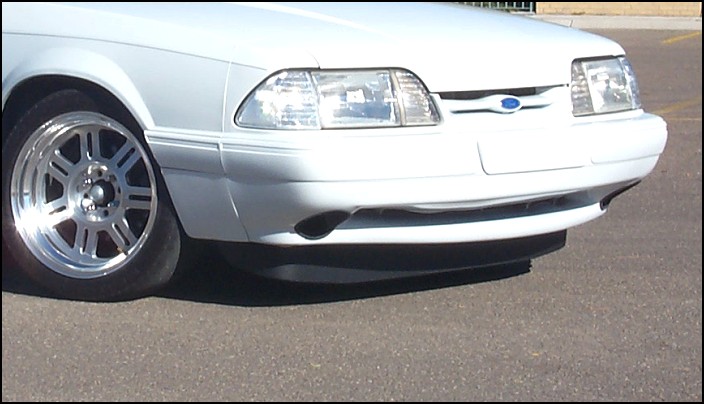

New Air Dam

Here is the new air dam mounted to the car. CAUTION: This air dam dramatically reduces the car's ground clearance, especially if the car is lowered, so take those dips, bumps, and parking lot entrances slowly and at extreme angles!

New Air Dam
Click on image to view a larger version
